Triplex Cable

Triplex aluminum conductor cables- The 3 center cable gives high voltage (HV) mains control dispersion for utility and mechanical applications. If it’s not too much trouble take note of: the red external sheath is inclined to blurring when presented to UV beams.

znergycable items are the longest enduring and most rough accessible, surpassing UL 1426, ABYC and US Coast Guard Charter pontoon (CFR Title 46) models. They are developed with premium vinyl protection that is evaluated at 600 volts, 105 deg C dry and 75 deg C wet, remains adaptable even in outrageous chilly (- 40 deg F/C) and opposes salt water, sulfuric acid, oil, fuel, warmth, scraped area and ultra-violet radiation. Most astounding quality ultra adaptable (Type 3) tinned copper stranding gives greatest insurance against erosion and electrolysis while opposing weakness because of vibration and flexing.

HOW TO PICK UP THE APPROPRIATE TRIPLEX CABLES

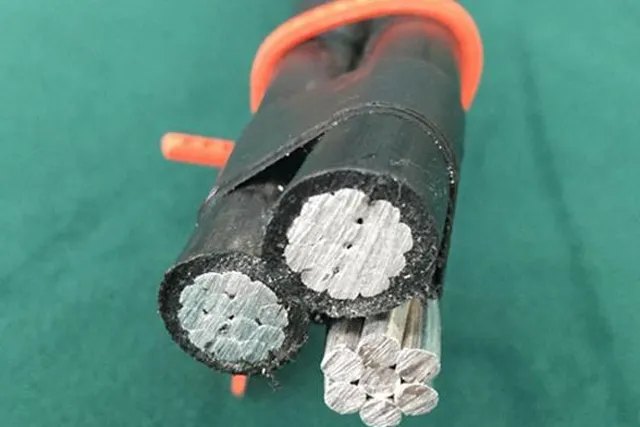

The triplex cable is best for installing or servicing wires overhead. They can be commonly seen in your locality for a single-phase cable conveying power. Triplex cable as the name suggests consists of three individual cable held by a sheath within. Twisted tightly around each other, two are insulated conductors and one uninsulated cable which is considered as the neutral one that allows them to function. If a circuit is connected between the insulated conductors the circuit voltage is 240 volts.If a circuit is connected between the neutral and either of the insulated conductors, the circuit voltage will be 120 volts. They are easily available at any electric supplies stores.They are also required for simple repairs. These are ideal if anybody has a business for connecting utility poles of two houses. The cable should be limited to 600V phase to phase and not exceed 90˚C. If ever you find it difficult to relate the exact size that you need you can carry along with you a sample for reference.

You cannot bury overhead triplex. You will have to look for another underground substitute equivalent to it, which has an insulated neutral, or individual THWN insulated wires. The neutral should be of the same size as the hot conductors. But despite having the drawback of not being used as an underground cable that is buried in trenches they are still popular.

Best place to purchase triplex cable.If you are thinking about where to buy triplex cable from then the best place will be Znergy Cables. You can contact us as well as order online. We also deal in almost all types of cables from low voltage cable to high voltage cable. Termite proof or Nylon HV cables, flexible, mining or armoured cable, underground or submersible cable, fire rated or fire retardant cable, 33KV cable, 22kv cable or TUV approved solar cables.

Triplex cables are 3 single center cables together in development and can be simpler and speedier to introduce than 3 center cables or separate single center cables. Cable end packs utilizing warmth contract innovation are additionally accessible for indoor and open air ending of high voltage cables (MV-HV). Complete scope of Triplex spikes are likewise accessible to hold cables to regulation in case of a short out circumstance. We provide complete range of indoor cable termination accessories for 11kV single core cables and also distribute HV heat shrink, cold shrink and plug-in style cable terminations and connectors for high voltage connection of power cables to air, gas or oil insulated switchgear and transformers, 11kV-33kV.

Service drop conductors are by and large kept running with links called triplex or quadraplex and are normally made of aluminum. Triplex cables is typically utilized for overhead single stage administration. Triplex cables contains three individual wires turned around one another: two protected transmitters called the “hot” legs of the administration and an exposed or uninsulated wire which is the impartial wire of the administration. If a circuit is associated between the two hot legs, the circuit voltage is 240 volts. If a circuit is associated between the impartial and either hot leg of the administration, the circuit voltage will be 120 volts.

Triplex Cables contains four individual wires and is normally utilized for overhead three stage administration drops. The three protected conductors compare to the three stages, usually alluded to as Phase A, stage B, and stage C. The nonpartisan in triplex cables is frequently exposed and grounded at the transformer and electric meter. It is additionally exceptionally basic for the impartial to be a littler wire check size than the hot or stage transmitters.

Underground administration drops use extraordinary protected cables endorsed for direct internment or might be introduced in channel so the link can be supplanted without broad burrowing.


Conductor:
Solid circular aluminium

Screen: Extruded conductor screen

Insulation: XLPE (Cross linked polyethylene)

Screen: Fully bonded insulation screen

Screen: copper wire screen

Tape: longitudinal water blocking tape

Sheath/Jacket: MDPE

Colour: Red

Voltage: 6650/11000v
