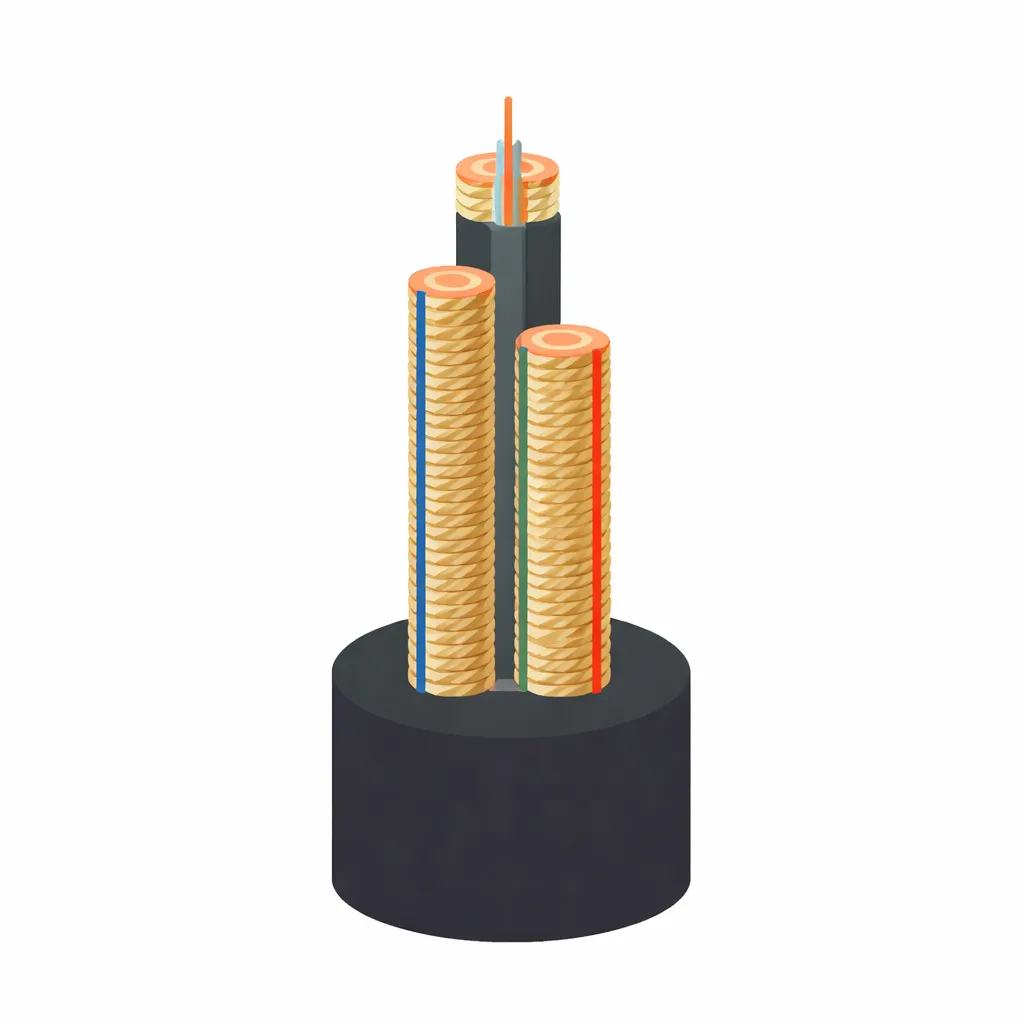

Type 409 is a Class 2, composite screened, three-core trailing cable designed for open cut and surface mining applications. It incorporates a central pilot core surrounded by three EPR-insulated power cores, three interstitial earth conductors, and a collective composite copper-wire screen, all enclosed in a heavy-duty PCP or CSP/CPE outer sheath.
Rated 1.1/1.1 kV through 22/22 kV (U0/U), it is the open-cut surface equivalent of the underground Type 209, sharing the same constructional numbering convention per AS/NZS 2802:2000.
Sheath abrasion from haul road surfaces: HD-85-PCP or HD-90-CSP/CPE sheath provides high abrasion resistance for cables dragged or laid across cut surfaces.
Screen damage from mechanical impact: Collective composite screen (Cu wire interwoven with textile yarn) provides earth fault detection with robust mechanical protection.
Insulation degradation at higher voltages: R-EP-90 insulation with increasing radial thickness from 1.5 mm (1.1 kV) to 10.5 mm (22 kV) provides appropriate dielectric withstand.
USE WHEN: Three-phase trailing supply to open cut draglines, shovels, drills and surface conveyors at 1.1–22 kV requiring collective earth fault detection via composite screen.
DO NOT USE WHEN: Underground coal mines (use Type 209). Where per-core individual earth fault detection is required (use Type 441). At voltages above 22 kV.
AS/NZS 2802:2000
AS/NZS 1125
AS/NZS 3808
Class 2
409.1 — 1.1/1.1 KV
409.3 — 3.3/3.3 KV
409.6 — 6.6/6.6 KV
409.11 — 11/11 KV
409.22 — 22/22 KV
Flame retardant and self-extinguishing per AS/NZS 2802. HD-85-PCP sheath resists ignition and limits flame propagation. Suitable for surface plant areas subject to fire risk protocols.
Rope-lay tinned annealed copper conductors per AS/NZS 1125. Minimum bending radius 8× overall diameter for trailing duty; 10× in fixed installations. Suitable for continuous trailing and reeling service.
Rope-lay tinned annealed copper conductors per AS/NZS 1125. Minimum bending radius 8× overall diameter for trailing duty; 10× in fixed installations. Suitable for continuous trailing and reeling service.
|
Oils & Hydraulic Fluids |
Good (PCP/CSP sheath) |
|
Acids & Alkalis |
Good |
|
UV / Ozone |
Excellent |
|
Abrasion |
Very High |
|
Water Immersion |
Suitable |
|
Property |
Specification |
|---|---|
|
Min. bend radius (trailing) |
8 × OD |
|
Min. bend radius (fixed) |
10 × OD |
|
Conductor stranding |
Rope-lay, Class 5 flexible (AS/NZS 1125) |
|
Sheath hardness |
HD-85-PCP or HD-90-CSP/CPE |
|
Sheath colour |
Black |
|
Approx. OD range |
23.7 mm (1.5 mm2/1.1 kV) to 111.7 mm (70 mm2/22 kV) |
ZNE[size]-409.[voltage]
e.g. ZNE95-409.6 = 95 mm2 Type 409 at 6.6/6.6 kV
|
Normal Operation |
Emergency |
Short Circuit |
|---|---|---|
|
90°C Conductor |
130°C |
250°C (5 s max) |
Standard: AS/NZS 2802:2000 — Class 2 (Table 12

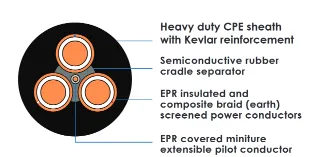

Configuration: 3C + 3E (interstitial) + 1P (central) + collective screen
Conductor: Tinned annealed copper, rope-lay (Class 5 flex) per AS/NZS 1125
Insulation: R-EP-90 elastomer per AS/NZS 3808
Conductor screen: Semiconductive tape (≥3.3 kV only)
Conductor screen: Composite — Cu wire interwoven with textile yarn over core assembly
Pilot core: Central, tinned Cu, R-EP-90 insulated, in cradle separator
Earth conductors: 3 × tinned Cu, interstitial, elastomer covered
Separator tape: Polyester (1.1 kV); semiconductive (≥3.3 kV)
Outer sheath: HD-85-PCP or HD-90-CSP/CPE per AS/NZS 3808
|
Parameter |
Value |
|---|---|
|
Voltage rating |
1.1/1.1 kV to 22/22 kV (U0/U) |
|
Max conductor temp |
90 °C continuous |
|
Insulation material |
R-EP-90 (Class 2) |
|
ti range |
1.5 mm (1.1 kV) to 10.5 mm (22 kV) |
|
Screen type |
Composite Cu wire — collective |
|
Screen conductance |
≥ 331⁄3 % of one power conductor per AS/NZS 2802 |
|
Symmetry |
Electrically symmetrical design |
|
Test voltage (1.1 kV) |
4.2 kV a.c. / 5 min |
|
Test voltage (3.3 kV) |
10 kV a.c. / 5 min |
|
Test voltage (6.6 kV) |
17 kV a.c. / 5 min |
|
Type |
Voltage |
Size Range (mm2) |
|---|---|---|
|
409.1 |
1.1/1.1 kV |
1.5 – 300 |
|
409.3 |
3.3/3.3 kV |
16 – 150 |
|
409.6 |
6.6/6.6 kV |
16 – 300 |
|
409.11 |
11/11 kV |
25 – 150 |
|
409.22 |
22/22 kV |
35 – 70 |
